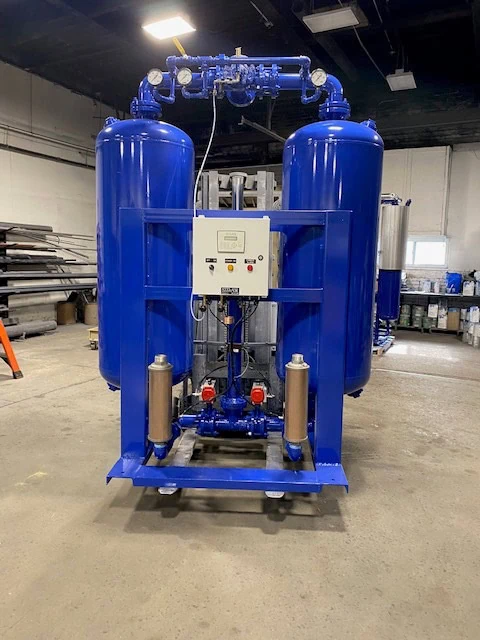

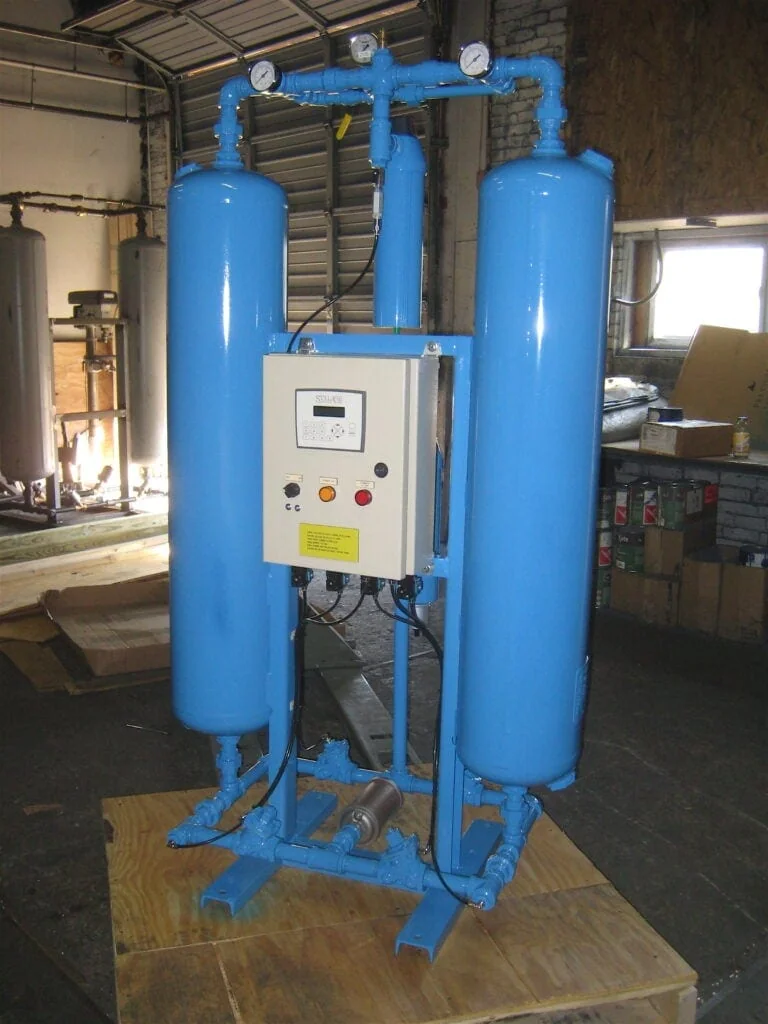

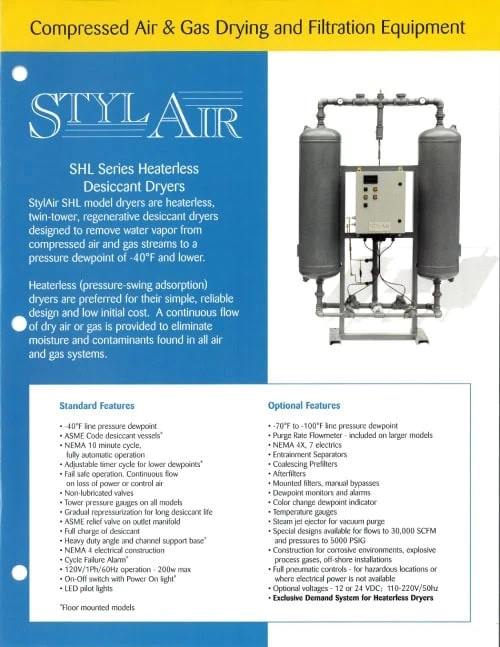

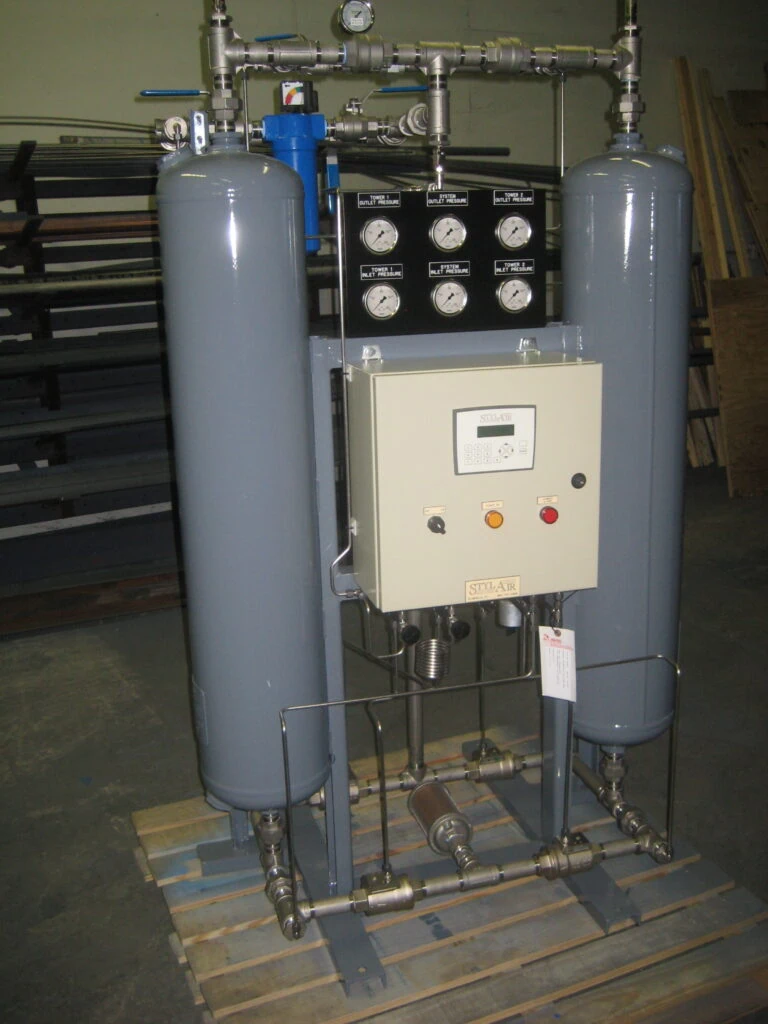

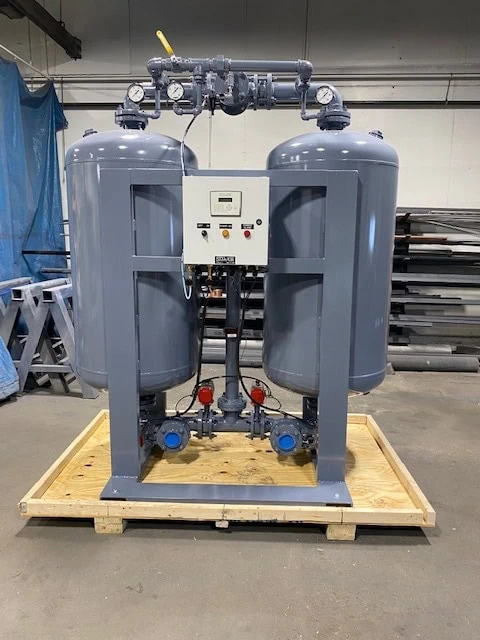

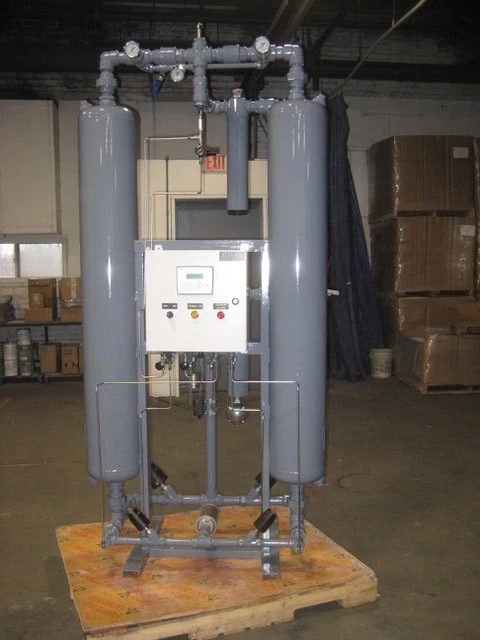

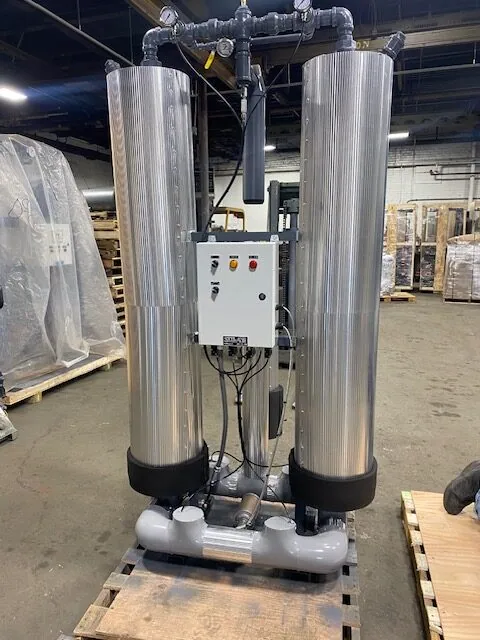

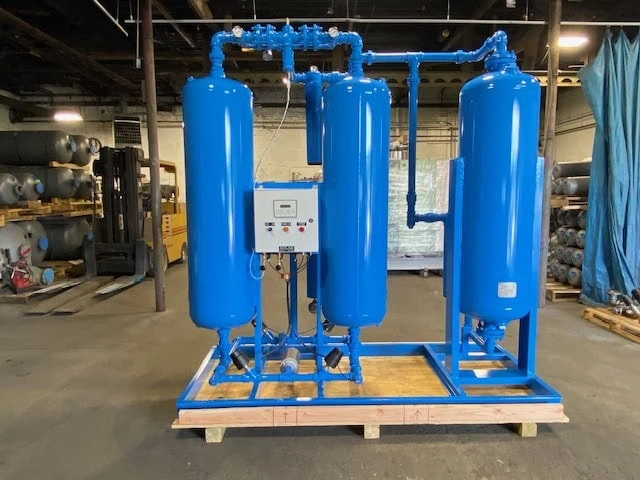

Heaterless Desiccant Dryers(SHL Series)

StylAir SHL model dryers are heaterless, twin-tower, regenerative desiccant dryers designed to remove water vapor from compressed air and gas to a pressure dewpoint of -40°F and lower.

Heaterless (pressure-swing adsorption) dryers are preferred for their simple, reliable design and low initial cost. A continuous flow of dry air or gas is provided to eliminate moisture and contaminants found in all air and gas systems.

Standard Features

-40°F line pressure dewpoint
ASME Code desiccant vessels (floor-mounted models)
NEMA 10 minute cycle, fully automatic operation
Adjustable timer cycle for lower dewpoints (floor-mounted models)
Fail safe operation: continuous flow on loss of power or control air
Non-lubricated valves
Tower pressure gauges on all models
Gradual repressurization for long desiccant life
ASME relief valve on outlet manifold
Full charge of desiccant
Heavy duty angle and channel support base (floor-mounted models)
NEMA 4 electrical construction
Cycle Failure Alarm (floor-mounted models)
120V/1Ph/60Hz operation
On-Off switch with Power-On light (floor-mounted models)
LED pilot lights

Optional Features

-70°F to -100°F line pressure dewpoint
Purge Rate Flowmeter – included on larger models
NEMA 4X, 7 electrics
Entrainment Separators
Coalescing Prefilters
Afterfilters
Mounted filters, manual bypasses
Dewpoint monitors and alarms
Color change dewpoint indicator
Temperature gauges
Special designs available for flows to 30,000 SCFM and pressures to over 5000 PSIG
Construction for corrosive environments, hazardous locations, off-shore installations
Full pneumatic controls – for hazardous locations or where electrical power is not available
Optional voltages – 12 or 24 VDC; 110-220V/50Hz
Exclusive demand system for Heaterless Dryers

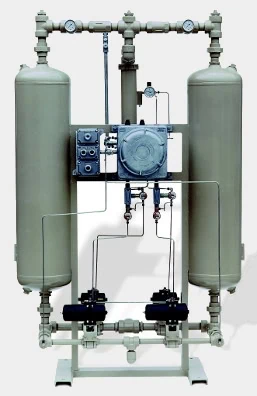

StylAir's SHL Series - More Info

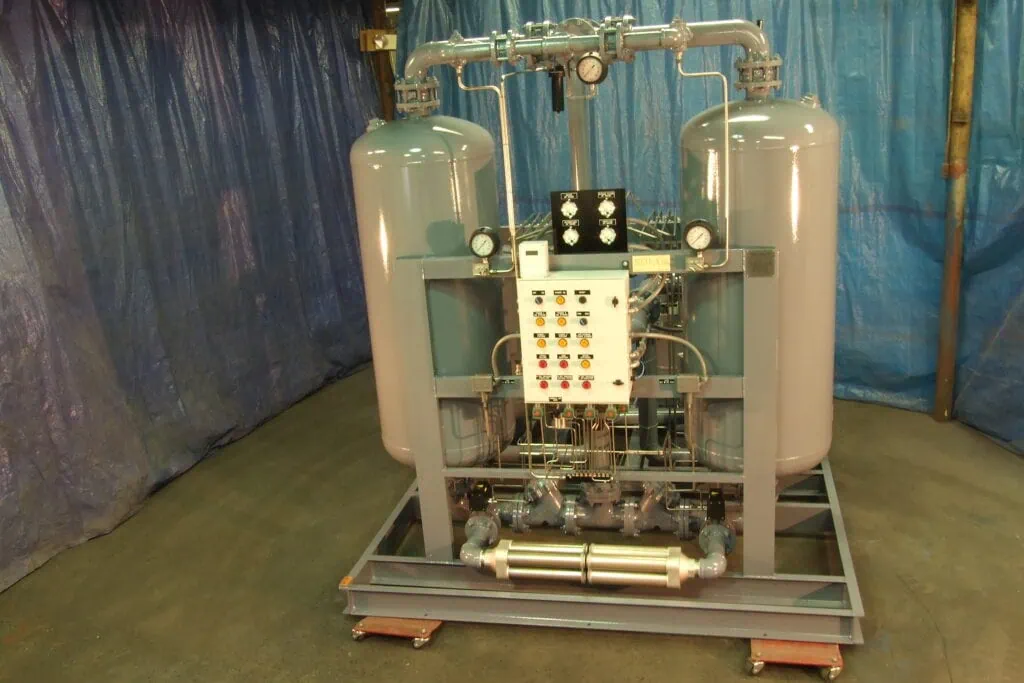

The StylAir regenerative desiccant dryer is a fully automatic unit designed to dry compressed air or gas to meet or exceed the customer’s requirements. The dryer consists of dual drying chambers which are alternately cycled through drying and regeneration cycles. One chamber is drying air at all times.

The wet, compressed process air flows through one drying tower where water vapor is adsorbed into the desiccant – an inert, hygroscopic material with an enormous surface to mass ratio. The off-stream drying tower is regenerated by taking a small amount of the dried process air (purge) and passing it through its bed at low (atmospheric) pressure. The moisture trapped in the desiccant is released and is carried off by the purge flow and exhausted to atmosphere.

Conservative Tower Sizing – Designed for Optimum Performance and Long Desiccant Life

Low upflow velocities – < 60 fpm
Long contact times – 5 sec. or more
Controlled blowdown and repressurization

ASME code designed and stamped drying towers on all floor models

SS Desiccant Support/Flow Distributors

Practically indestructible wedge-wire design prevents collapse or tearing; are cleanable and reusable (floor models)
High strength welded screen on wall models

Rugged, Reliable Industrial Controls

UL components from controllers to terminal boards to provide that extra measure of safety
High style NEMA 4/IP65 enclosures
Microprocessor/PLC based controls provide real diagnostic info

Standard corrosion resistant acrylic coating protects for years in adverse environments

Proven high reliability valving

Designed for air dryer service
Non-lubricated, high cycle design
Easy maintenance
Only dry, filtered pilot air is used for actuated valves

Separate desiccant fill and drain ports on all models (exc. SHL-H01N and SHL-H03N)

StylAir's SHL Series - Models

Specifications
SHL Series - Heaterless Twin-Tower Regenerative Desciccant Air Dryers
MAXIMUM FLOW CAPACITIES (SCFM)
Model	80 PSIG		90 PSIG		100 PSIG		110 PSIG		120 PSIG		Conn. Size	App. Dims.	App. Wt.
SHL-	100°F	120°F	100°F	120°F	100°F	120°F	100°F	120°F	100°F	120°F		W x D x H	lbs
H01N	0.8	0.8	0.9	0.9	1	1	1.1	1	1.2	1.1	1/8”	4 x 3.5 x 9	5
H03N	2.5	2.4	2.7	2.6	3	2.9	3.3	3.1	3.5	3.4	1/4”	7.5 x 5.5 x 14	9
H06N	5	4.8	5.5	5.3	6	5.8	6.5	6.3	7	6.8	1/4”	7.5 x 5.5 x 18	10
H09N	7	7	8	8	9	9	10	9	11	10	1/2”	7.5 x 5.5 x 17.5	11
H12N	10	10	11	11	12	12	13	13	14	14	1/2”	7.5 x 5.5 x 20	12
H16N	13	13	15	14	16	15	17	17	19	18	1/2”	9.5 x 6.5 x 33	30
H25N	21	20	23	22	25	24	27	26	29	28	1/2”	9.5 x 6.5 x 42	35
H35N	29	28	32	31	35	34	38	37	41	40	1/2”	10 x 7 x 40	60
H50N	41	40	46	44	50	48	54	52	59	57	1/2”	10 x 7 x 47	65

A08	66	64	73	71	80	77	87	84	94	91	3/4”	31 x 20 x 70	475
A09	99	96	110	106	120	116	130	126	141	136	1”	36 x 20 x 70	490
A10	132	128	146	141	160	154	174	168	188	181	1”	36 x 20 x 70	560
A10L	182	175	201	194	220	212	239	231	258	249	1-1/2”	40 x 20 x 90	650
A12	264	255	292	282	320	309	348	336	376	363	1-1/2”	52 x 20 x 90	780
A14	363	351	402	388	440	425	478	462	517	499	1-1/2”	54 x 20 x 90	950
A16	479	462	529	511	580	560	631	609	681	658	2”	56 x 22 x 96	1150
A18	611	590	675	652	740	714	805	777	869	839	2”	56 x 30 x 96	1500
A20-2.5	743	717	822	793	900	869	978	945	1057	1020	2-1/2”	65 x 38 x 96	1800
A20-3	743	717	822	793	900	869	978	945	1057	1020	3” Flg’d	72 x 38 x 96	1900
A24	1073	1036	1187	1146	1300	1255	1413	1365	1527	1474	3” Flg’d	76 x 42 x 96	2200
A30-3	1321	1275	1461	1410	1600	1545	1739	1680	1879	1814	3” Flg’d	88 x 48 x 92	3700
A30-4	1693	1634	1871	1807	2050	1979	2229	2152	2407	2324	4” Flg’d	88 x 48 x 108	4500
A36-4	2460	2376	2720	2626	2980	2877	3240	3128	3500	3379	4” Flg’d	100 x 58 x 116	6000
A36-6	2460	2376	2720	2626	2980	2877	3240	3128	3500	3379	6” Flg’d	100 x 58 x 116	6500
A42	3303	3189	3651	3525	4000	3862	4349	4199	4697	4535	6” Flg’d	134 x 52 x 118	7600
A48	4211	4066	4655	4495	5100	4924	5545	5353	5989	5783	6” Flg’d	140 x 60 x 118	9500
